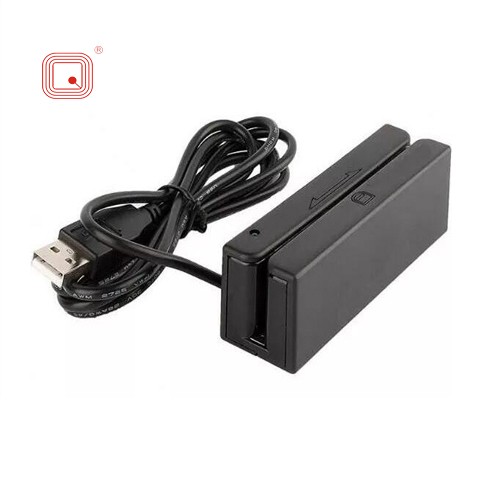

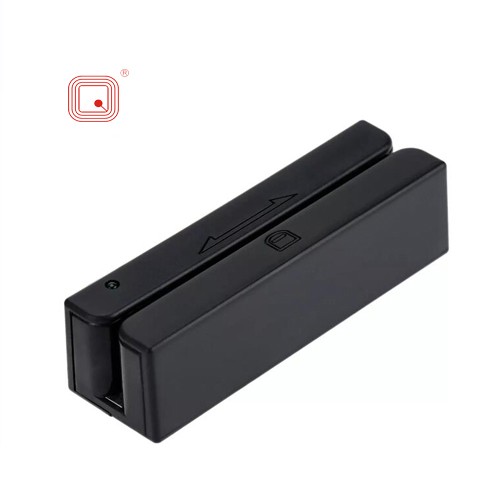

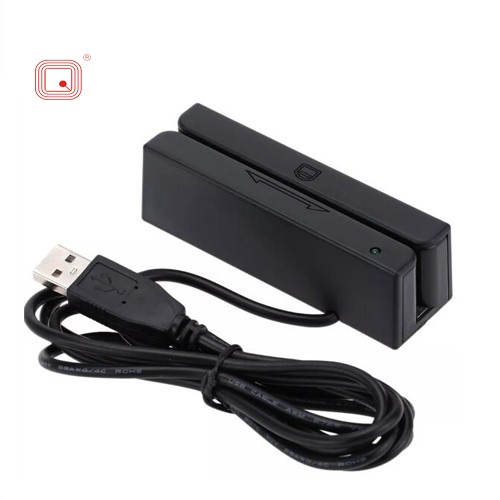

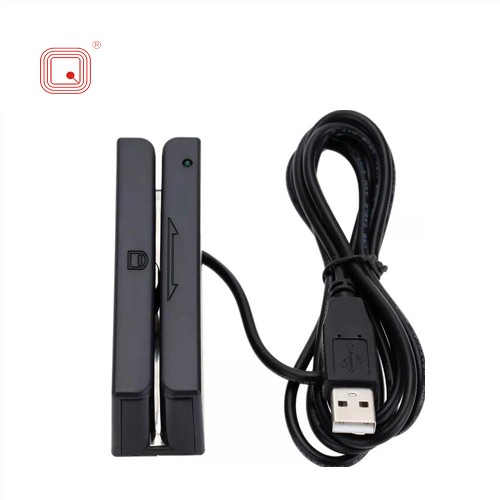

Magnetic Card Reader

USB Magnetic card reader, swipe barcode card reader

USB interface to keyboard buffer,reads 3 tracks of data. Designed for PC laptops. Color is black. Windows programming disk supplied

Track 1/2/3 Magnetic Card Reader Smart Card Reader

1. Plug and play, free drive, uploading data actively;

2 Working state sound and light dual indicator;

3.Supporting swiping card Bi-directionally with high and low speed;

4. Using imported chip, read weak magnetic stripe card, high sensitivity, low power consumption, strong   compatibility, strong anti-interference;

5. Identify the different density and standard card automatically ;

 6.Hardware decoding, the output data is decoding data, customers do not need to write the decoding process, greatly simplifying the difficulty of programming.

 7.USB interface, analog USB keyboard mode (customizable keyboard interface, RS232 serial port, TTL interface, PS2 etc.

 Interface Introduction(USB Keyboard Type)

1. the Swiping card slot is the simulation of USB keyboard, using USB keyboard driver comes with system, so long as where you can use the keyboard to input characters into, you can get card data with a card slot, such as Notepad, word, etc.

2. when using the card slot, please switch the input method to the English mode and make sure your keyboard "Lock Cap" key is not locked.

3. acquiescence is three tracks. Upload one two three track data in turn. The first track data with “%” beginning,with  “?” end, the Second track data with“;” beginning,with “?”end, the third track data with “+” beginning, with “?” end.the whole data with “Enter” over.
