NFC Reader & Writer

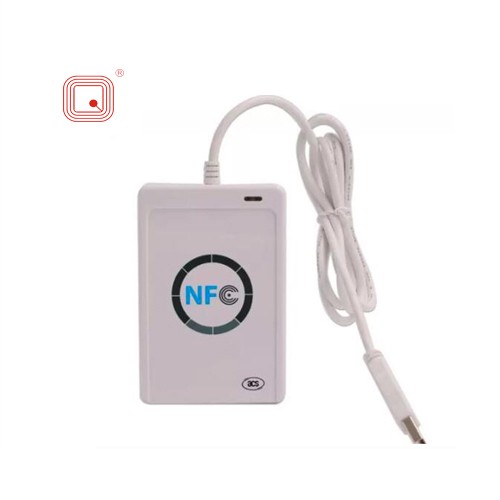

13.56 MHz Plastic USB Interface NFC RFID Reader & Writer

Description

The Smart Card Reader is a non-contact smart card reader based on 13.56 MHz non-contact (RFID) technology. It uses USB full speed interface (12 Mbps), access speeds up to 424kbps, can be more efficient and efficient read and write operations. In addition the card reader operating distance up to 5 cm, depending on the type of non-contact tag may be.

To increase the security level, the reader can be integrated with the ISO 7816-3 SAM card slot. In addition reader NFC reader can also be provided as a module for easy integration into POS terminals, access control systems, vending machines and other larger devices.

The Card Reader is ideal for personal identification and online micro-payment transactions. It can be used in a wide range of applications such as access control, electronic payments, e-ticketing (major events and public transport), toll collection and network verification.

Features

• CCID-compliant

• PC/SC-compliant

• Read/write speed up to 424 kbps

• Built-in antenna for contactless tag access, with card reading distance of up to 50mm(depends on tag type)

• Supports ISO14443 Type A and B, MIFARE® , FeliCa, and all 4 types of NFC (ISO/IEC 18092) TAG

• Supports all 3 modes of NFC reader mode, card emulation and peer-to-peer mode

• Built-in anti-collision featured( at least 1 card is detected when multiple cards are presented)

• USB PnP

• Bi-color LED

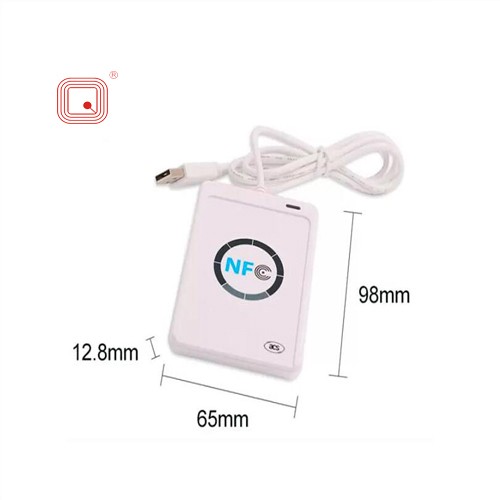

• Compact size: 98mm(L)X65mm(W)X12.8mm(H)

• Light Weight:70g

• Compliance with CE, FCC,VCCI and ROHS

• User-controllable buzzer (optional)

Specification

Universal Serial Bus Interface
Power source	From USB
Speed	12 Mbps(Full Speed)
Supply voltage	Regulated 5V DC
Supply Current	200mA (maximum) 50Ma (standby),100Ma (normal)
Contactless smart card interface
Standard	ISO/IEC 18092,ISO14443A and B, FeliCa, MIFARE®Classics
Protocol	Felica protocol, T=CL protocol
Operation Frequency	13.56MHz
Smart card read/write speed	106kbps, 212 kbps, 424 kbps
Casing
Dimensions	98mm(L)X65mm(W)X12.8mm(H)
Weight	70 g
Material	Polycartionate (PC)
Color	Pearl White
Antenna size	50X40mm
Operating distance	Up to 50mm
Built-in Peripherals
BI-Color LED	Bi-color LED, red and green
Buzzer	Monotone (optional)
Operating Conditions
Temperature	0~50 C
Humidity	10%~80%
Cable connector
Length	1m(USB)
Certifications/Compliance
PC/SC ,CCID,CE,FCC,VCCL,ROHS compliant
Microsoft WHOL 2000,XP,Vista 7
Device driver operating system support
Windows 2000, Server 2003,XP, Vista, Server 2008,7 Windows CE 5.0 Linux, Mac OS X

Applications

• Network access control

• Micro-payment

• NFC mobile tag

• Public transportation terminals

• Automatic fare collection

• Physical access control

• Customer loyalty

• Time and attendance

• Contactless public phones

• Vending machines

• can connect with multiple devices
