AT88SC0204C Contact Card

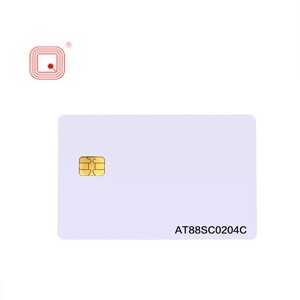

PVC ISO 7816 CR80 AT88SC0204C Contact Smart Card

PVC contact smart card with AT88SC0204C chip for insurance cards

Description:

This AT88SC0204C White / printed  PVC card, is part of Atmel’s CryptoMemoryTM family of products. This new family of secure circuits offers a high security chip solution that fills the void between plain serial memories and microprocessors. The user memory is divided into four 64-byte zones, each of which may be individually set with different security access rights or effectively combined together to provide space for 1 to 4 data files. It’s applications include ID cards, driving licenses, insurance cards, access control, administrative cards, campus cards, voting machines, e-purse, loyalty, energy meters, parking meters, transaction records and multi applications.

Features:

• One of a family of nine devices with user memories from 1-Kbit to 256-Kbit

• 2-Kbit (256-byte) EEPROM user memory

• Four 64 byte (512 bit) zones

• Self-timed write cycle(5 ms)

• Single byte or 16-byte page write mode

• Programmable access rights for each zone

• 2-Kbit configuration zone

• 37-byte OTP area for user-defined codes

• 160-byte area for user-defined keys and passwords

•  High security features

• 64-bit mutual authentication protocol (under license of ELVA)

• Encrypted checksum

• Stream encryption

• Four key sets for authentication and encryption

• Eight sets of two 24-bit passwords

• Anti-tearing function

• Voltage and frequency monitor

• ISO 7816 Class A (5V) or Class B (3V) operation

• ISO 7816-3 asynchronous T = 0 protocol (Gemplus® patent)

• Multiple zones, key sets and passwords for multi-application use

• Synchronous 2-wire serial interface for faster device initialization

• Programmable 8-byte answer-to-reset register

• ISO 7816-2 compliant modules

• Low voltage operation: 2.7V to 5.5V

• Secure nonvolatile storage for sensitive system or user information

• 2-wire serial interface

• 1.0MHz compatibility for fast operation

• Standard 8-lead plastic packages, green compliant (exceeds RoHS)

• Same pinout as 2-wire Serial EEPROMs

• Endurance: 100,000 cycles

• Data retention: 10 years

• ESD protection: 4,000V min

Product Parameter:
